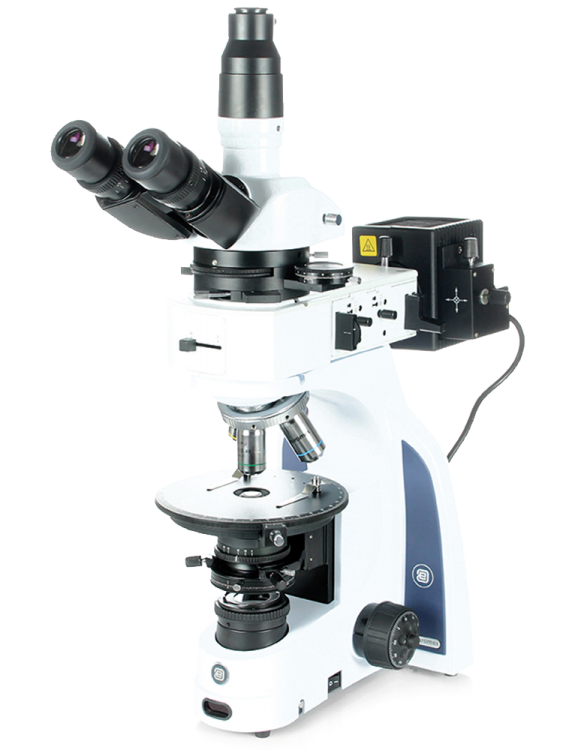

Mikroskop do Polaryzacyjny IS.1053-PLPOLRi (EWF 10x/20mm, plan PLPOLRi 5x/10x/20x/S50x IOS )
okulary szerokokątne EWF 10x/20 (tubusy Ø 30 mm, 30°), oba wyposażone w celowniki, jeden dodatkowo wyposażony w siatkę mikrometryczną
głowica trinokularowa, Siedentopf wyposażona w tubus 23.2 mm z mocowaniem C-mount
regulacja dioptrii dla obu okularów (± 5), regulacja odległości międzyźrenicowej w zakresie 48 do 76 mm
- A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
uchwyt rewolwerowy czteropozycyjny (łożyskowany), odwrócony
- obiektywy:
Plan PLPOLRi strain free infinity corrected objectives for polarization applications. No cover glass correction, reflected illumination.
Plan PLPOLRi IOS: 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.75
Plan PLPOLRi IOS S100x/0.80 (opcja dodatkowa) - 360° Rotating Ø 160 mm graduated stage with two object clamps; dostępny stolik X-Y 30 x 40 mm
kondensor Abbego (N.A. 1.25) z regulowaną wysokością, przysłona irysowa oraz odchylany polaryzator obracany 360°
- Coaxial coarse and fine adjustments, 200 graduations, 1μm/podziałkę, 200μm/obrót, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control
oświetlenie o regulowanej intensywności 3 W Köhler NeoLED™ (technologia zapewniająca jednorodne oświetlenie oraz wysoki kontrast),
zasilanie sieciowe 230V- Polarisation models with transmitted light only are supplied with: 360° rotatable polarization filter, Bertrand lens (build-in), 1 λ first red and 1/4 λ retardation plate, a quartz wedge, 45 mm green and blue filters for lamp house
oświetlacz halogenowy Epi 50W 12V zasilany sieciowo (230V); w komplecie analizator i polaryzator 360°
- Bertrand lens (build-in), 1 λ first red plate, 1/4 λ retardation plate, a quartz wedge,
- sliders with green/blue and white/neutral densitiy filter. 45 mm green and blue filters for lamp house
- The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position
Pomoce Naukowe oraz Stanowiska Edukacyjne dla Uczelni Technicznych: Mikroskop Polaryzacyjny IS.1053-PLPOLRi (EWF 10x/20mm, plan PLPOLRi 5x/10x/20x/S50x IOS )
Euromex Microscopes was founded in 1966. More than 900.000 microscopes have been delivered over the past 45 years. Around the world, Euromex is represented in more than 70 countries through distributors, re-sellers and agents, selling Euromex and Novex microscopes. We carry all products on stock, ready to deliver. 98% of our orders are processed within 2 working days. Euromex ensures to keep spare parts for all microscopes and instruments for a period of 20 years. On warranty repairs we generally guarantee fixing within one week from arrival at factory. In our Holland based workshop microscopes are assembled according to customer specifications. Euromex is ISO 9001:2008 certified. On our microscopes we carry a long term warranty up to 10 years!
