Modulacja / Demodulacja AM - Stanowisko Edukacyjne
typ: ST2170J; zapytanie o cenę
Stanowisko nie wymaga instalacji. W komplecie dostarczamy: zasilacz, akcesoria, kompletne okablowanie oraz opisy przykładowych ćwiczeń.
Zalecane wyposażenie dodatkowe: oscyloskop/multimetr.
Opis Stanowiska:

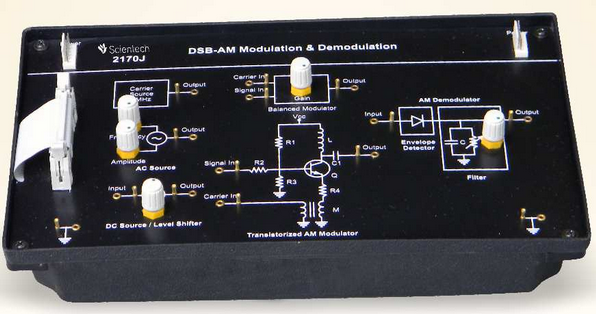

Scientech 2170J DSB-AM Modulation & Demodulation is a comprehensive training solution for acquiring in-depth knowledge of the fundamental techniques used in DSB Amplitude Modulation and Demodulation. The implementation of DSB AM is tough, hence this board has been designed for beginners to get acquainted with concept of the real technology implementation. Scientech 2170J DSB-AM Modulation & Demodulation comprises of following blocks :
- AC Source with variable amplitude and frequency
- Carrier Source
- DC Source/Level Shifter
- Balanced Modulator with adjustable gain
- Transistorized AM Modulator
- Envelope Detector with adjustable band filter
Realizowane Zagadnienia Edukacyjne
- Study of Amplitude Modulation using a Balanced Modulator.
- Study of Amplitude Modulation using a Transistorized AM Modulator.
- Observations of modulation index/modulation depth.
- Study of envelop detector and its utilization in AM detection.
- To establish a relationship between RC time constant of diode detector, carrier frequency and modulating signal frequency.
Stanowisko dostarczamy z opisami gotowych ćwiczeń.
